Pulsar 6862G 1050HP 68mm Dual Ball Bearing Turbo

Pulsar 6862G 1050HP 68mm Dual Ball Bearing Turbo

$1,399.00 AUD
$1,399.00 AUD
Sale Sold out
Taxes included.
Turbine Housing Options
Compressor Housing Options
Housing Style
  • Dual ceramic ball bearing system provides optimal turbo response &
    better durability by reducing the shaft-motion
  • 9 Blade PTG-Aero billet compressor wheel with extended tapered tip technology
  • 9 Blade PTG-Aero Inconel 713c turbine wheel
  • Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
  • Compressor Wheel: 68*84mm
  • Turbine Wheel: 68*62mm
  • Compressor Inlet: 4” Hose
  • Compressor Outlet: 2.5” Hose
  • Turbine Inlet: T3/T4/V-BAND
  • Turbine Outlet: 3” V-Band
  • Water Ports: 2-M14 x 1.5
  • Oil Feed: 7/16-24 UNF with a -4AN Restrictor Pre-installed
  • Oil Drain: Std T3

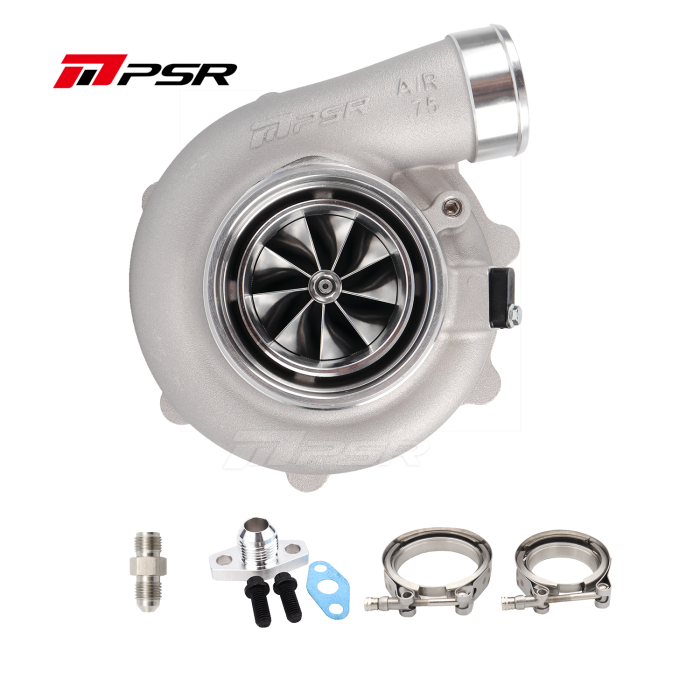

  • Comes with Inlet flange and clamp (DVB) and Outlet flange and clamp



Housing Options:

  • T3 Inlet V-Band Outlet 0.83 A/R
  • T4 Inlet V-Band Outlet 0.82 A/R
  • .83 Dual V Band
  • 1.01 Dual V Band
  • .85 Divided T4
  • .82 Dual V Band Stainless Steel
  • T4 Open .63 Stainless Steel
  • T4 Divided 1.06 A/R

Housing Style:

  • Standard Housing
  • Stainless Steel Wrapped Housing — available at additional cost
  • (Please allow 1-2 weeks for stainless steel wrapped housings if stock isn’t available.)

The Stainless Steel Wrapped Housing option adds an external stainless steel heat-retaining wrap around the turbine housing to help contain radiant heat around the turbine area.

Where listed, the turbocharger can also be selected without a turbine housing.
