Pulsar Turbo

Pulsar 5855G 770HP 58mm Dual Ball Bearing Turbo

Pulsar 5855G 770HP 58mm Dual Ball Bearing Turbo

$1,269.00 AUD
$1,269.00 AUD
Sale Sold out
Taxes included.
Compressor Housing Options
Turbine Housing Options
Housing Style
  • Dual ceramic ball bearing system provides optimal turbo response &
    better durability by reducing the shaft-motion
  • 9 Blade PTG-Aero billet compressor wheel with extended tapered tip technology
  • 9 Blade PTG-Aero Inconel 713c turbine wheel
  • Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
  • Optional Internal Wastegate (IWG), Billet Actuator (Working pressure 12 psi)

Description

  • Compressor Wheel: 58*71mm
  • Turbine Wheel: 60*55mm
  • Compressor Inlet: 4″ Hose
  • Compressor Outlet: 2″ Hose

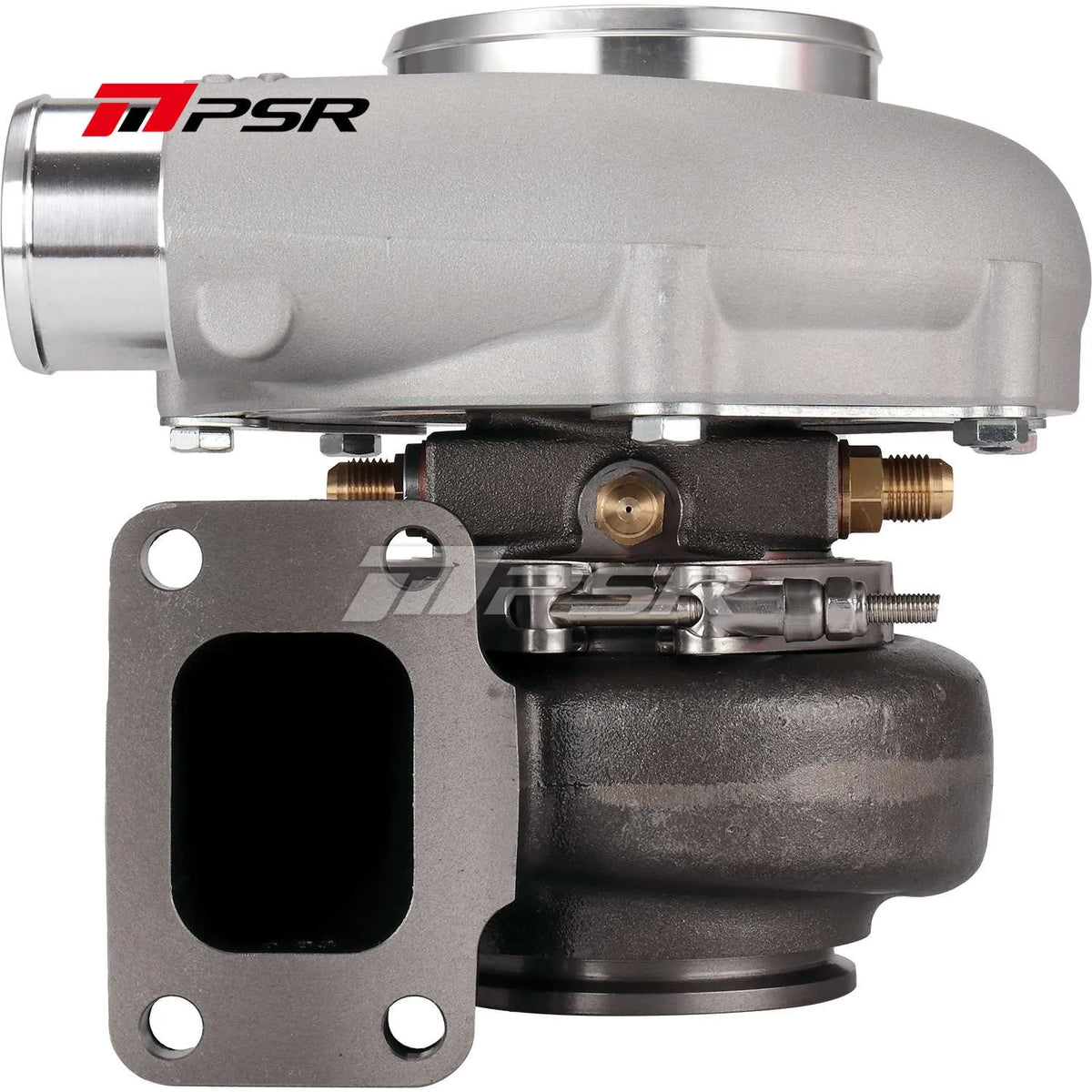

  • Turbine Inlet: T3 or T4
  • Turbine Outlet: 3″ V-Band
  • Water Ports: 2-M14 X 1.5
  • Oil Inlet: 7/16-24 UNF with a -4AN Restrictor pre-installed
  • Oil Outlet: Std T3 Oil Drain Flange

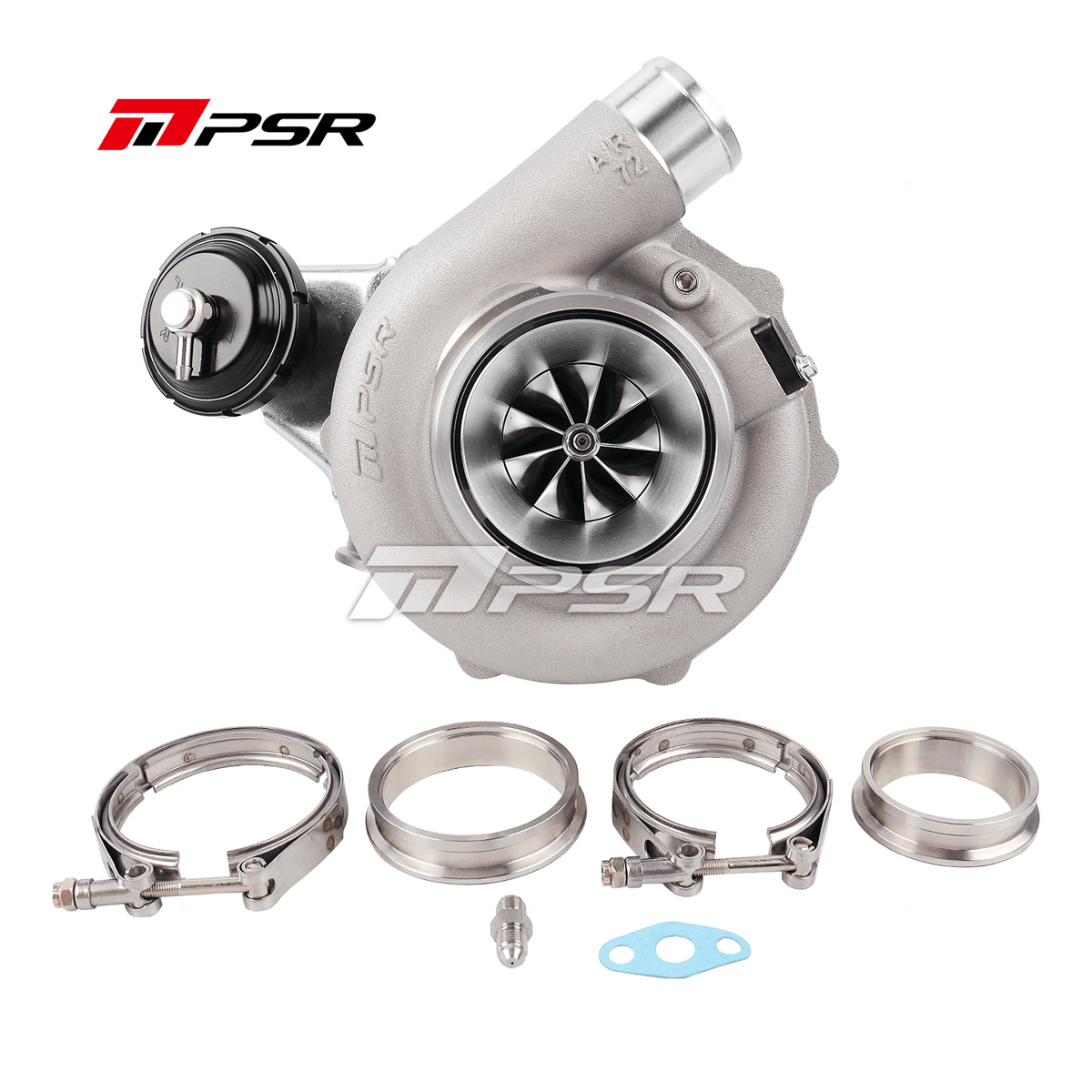

  • Comes with Inlet flange and clamp (DVB) and Outlet flange and clamp
  • 11 options of turbine housing: Dual vband 0.72A/R; Dual vband 0.83A/R; Dual vband 1.01A/R; T3 0.72A/R; T3 0.83A/R; T4 0.82A/R; T4 divided 0.85A/R;  Dual vband 0.49A/R IWG; Dual vband 0.72A/R IWG; Dual vband 0.92A/R IWG; T25 0.72A/R IWG


Housing Options:

  • T3 .72 V-Band
  • T3 .83 V-Band
  • T4 .82 V-Band
  • .85 Divided T4
  • .49 DVB IWG
  • .72 Dual V Band IWG
  • .92 DVB IWG
  • .72 Dual V Band
  • .83 Dual V Band
  • 1.01 Dual V Band
  • ..82 Dual V band Stainless Steel
  • T25 .72 IWG

Housing Style:

  • Standard Housing
  • Stainless Steel Wrapped Housing — available at additional cost
  • (Please allow 1-2 weeks for stainless steel wrapped housings if stock isn’t available.)

The Stainless Steel Wrapped Housing option adds an external stainless steel heat-retaining wrap around the turbine housing to help contain radiant heat around the turbine area.

Where listed, the turbocharger can also be selected without a turbine housing.
