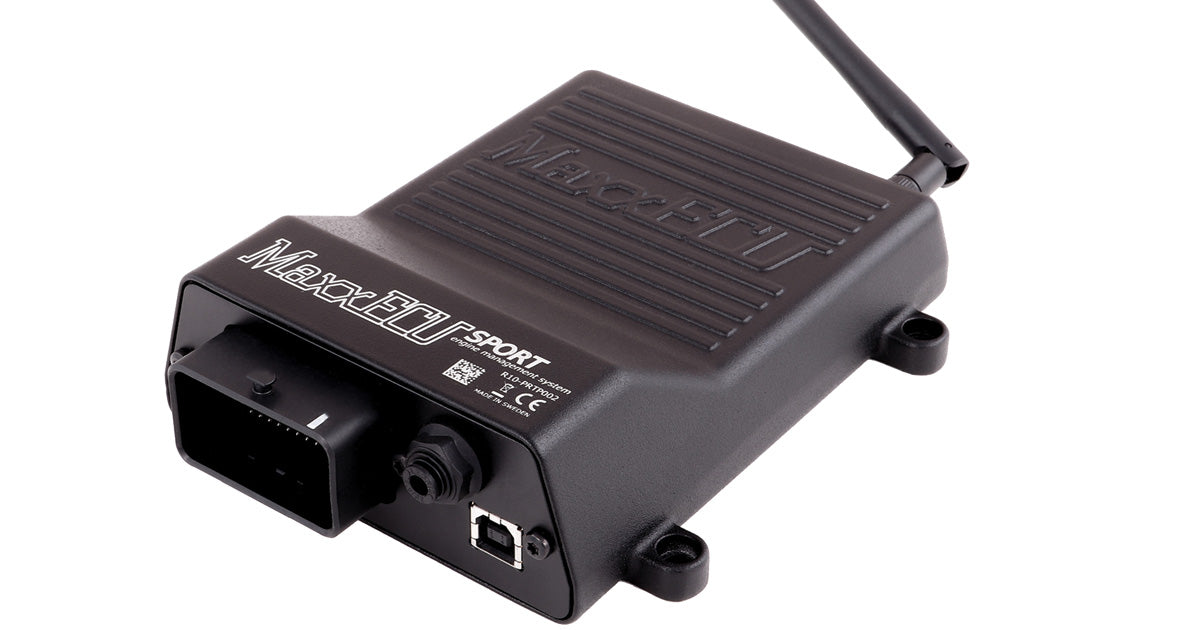

MaxxECU SPORT

MaxxECU SPORT

MaxxECU SPORT builds on the STREET with E-throttle support, Bluetooth, low impedance injector drive and an aluminium case - ideal for 4 and 6 cylinder performance builds.

Specification

• Controls up to 6 cylinders sequentially (12 in wasted spark)
• Built-in wideband lambda controller (LSU 4.2 or 4.9)
• Built-in 400kPa MAP sensor
• E-Throttle (drive-by-wire) support
• Bluetooth
• 2 trigger inputs
• IAT, TPS and CLT analog inputs plus 2 extra temperature inputs
• 2 extra digital inputs
• 6 injector outputs (high/low impedance)
• 6 ignition outputs (no internal amplifiers)
• 7 extra flexible outputs (GPO) and 2 extra motor outputs
• CAN bus
• Aluminium case
• MTune PC software with USB connection

Package Options

• Unit Only
• STANDARD (ECU, harness & accessories)
• PREMIUM (ECU, harness, accessories & LSU 4.2)
• PREMIUM (ECU, harness, accessories & LSU 4.9)
