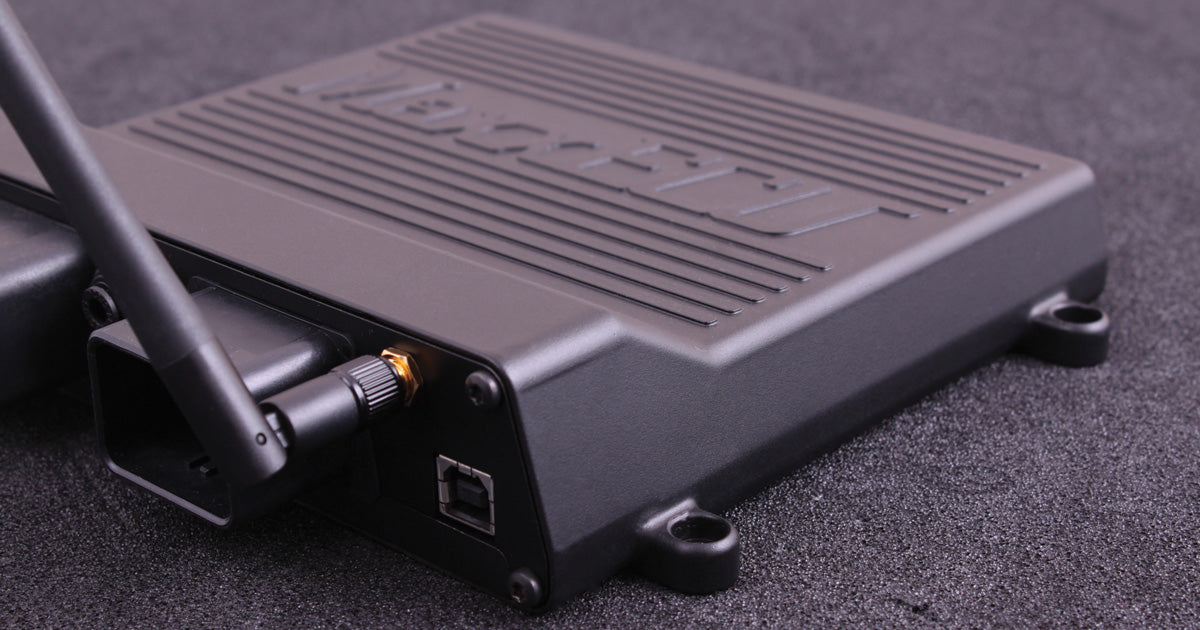

MaxxECU RACE

MaxxECU RACE

MaxxECU RACE is based on the MaxxECU PRO and uses the same easy to use, yet powerful MTune software. Flexible, reliable and fast - full engine control for 3-12 cylinder engines. Also available as the water-protected RACE H2O.

Specification

• All 3-12 cylinder engines (4-stroke)
• Up to 8 cylinders fully sequential, up to 12 in wasted spark
• Built-in wideband lambda controller (Bosch LSU 4.2 / 4.9)
• 2 trigger inputs - VR or digital, automatic trigger level detection
• 2 extra temperature sensor inputs and 2 knock sensor inputs
• 6 extra 0-5V inputs and 4 extra digital inputs (VR/Hall) or switches
• 8 EGT type K/N inputs (1200°C) in separate harness
• 8 peak/hold injector outputs and 8 ignition outputs
• 9 extra low-side outputs, 2 extra +12V outputs and 4 extra motor outputs
• H2O version: water protected housing

Package Options

• Unit Only
• STANDARD (ECU & harness)
• PREMIUM (ECU, harnesses, accessories & LSU 4.2)
• PREMIUM (ECU, harnesses, accessories & LSU 4.9)
• H2O Unit Only
• H2O PREMIUM (ECU, harnesses, accessories & LSU 4.2)
• H2O PREMIUM (ECU, harnesses, accessories & LSU 4.9)
