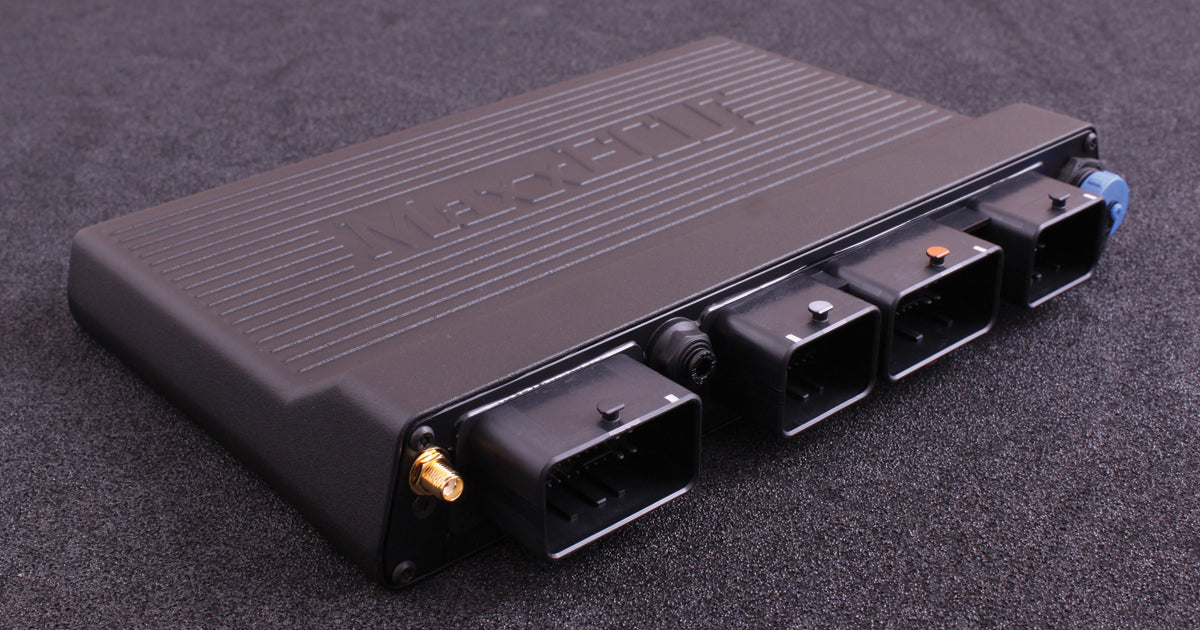

MaxxECU PRO

MaxxECU PRO

MaxxECU PRO is developed from the ground up to be flexible, reliable and fast - complete engine control for the most demanding builds up to 12 cylinders.

Specification

• Up to 12 cylinders sequentially
• 16 injector outputs (low or high impedance)
• 12 ignition outputs
• 12 EGT sensor inputs
• Built-in MAP sensor up to 3 bar boost (400kPa)
• Built-in dual wideband drivers (LSU 4.2 / 4.9)
• Dual E-Throttle (DBW) support
• Dual knock sensor inputs
• 16 optional 0-5V inputs and 6 additional temperature inputs
• 10 additional digital inputs (4 VR capable)
• 30 auxiliary outputs (8 of them +12V)

Package Options

• Unit Only
• STANDARD (ECU & harness)
• PREMIUM (ECU, harnesses, accessories & LSU 4.2)
• PREMIUM (ECU, harnesses, accessories & LSU 4.9)
