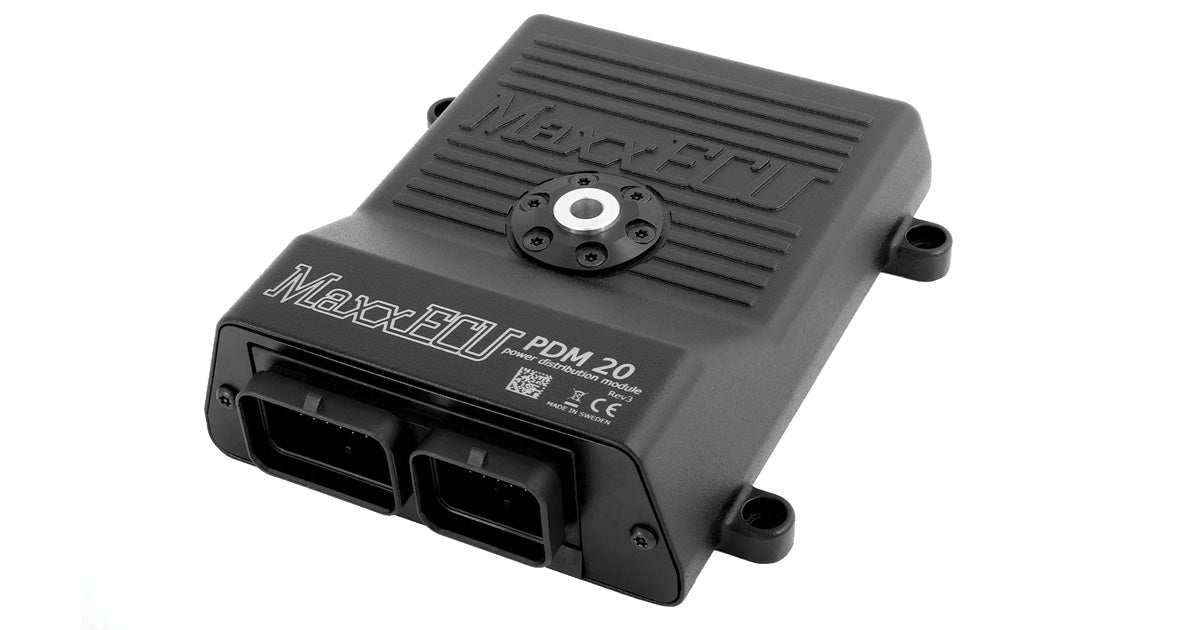

MaxxECU PDM20

MaxxECU PDM20

The MaxxECU PDM20 is an advanced Power Distribution Module for MaxxECU units, designed to replace fuses and relays in a modern way.

Specification

• Max 230A
• 20 outputs (8x 25A, 8x 15A, 4x 8A) - outputs can be paralleled for high loads
• 7 digital / analog (0-24V) inputs
• All outputs PWM controllable
• Dedicated +5V supply and sensor ground
• CAN bus communication and setup through MaxxECU MTune
• Adjustable overcurrent protection with automatic restart and soft start option
• Under / over current warning levels and error code handling
• Support for CAN keypads
• Energy saving mode drawing only 0.004A
• Works with all MaxxECU devices

Package Options

• Unit Only
• with Accessories
• PREMIUM (PDM, harnesses & accessories)
