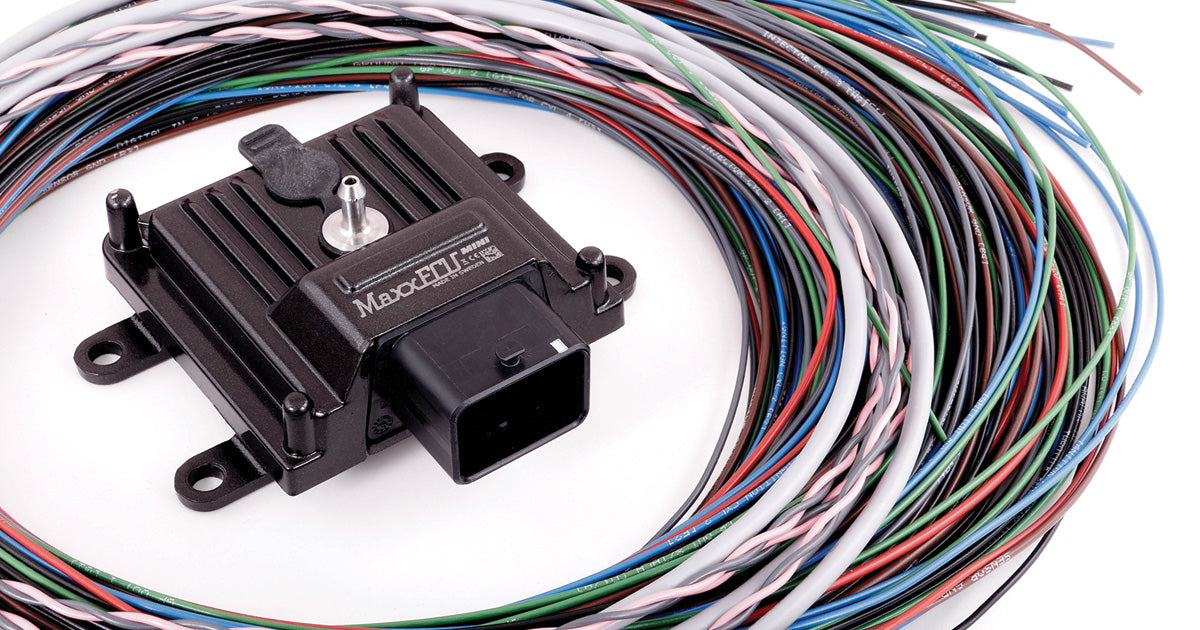

MaxxECU MINI

MaxxECU MINI

MaxxECU MINI is based on MaxxECU's market leading units and uses the same easy to use, yet powerful MTune software - an affordable, compact standalone ECU for up to 4 cylinders.

Specification

• 4 injector outputs (high impedance) and 4 ignition outputs (no internal amplifiers)
• Built-in 400kPa MAP sensor
• IAT, TPS and CLT analog inputs
• 2 extra 0-5V analog inputs and 2 extra digital inputs
• 4 extra GPO (ground) outputs
• CAN bus
• 1 trigger input (VR/Hall) - digital input can be used as home for sequential control
• MTune PC software with USB connection
• Cortex M3 120MHz main processor

Package Options

• Unit Only
• BASIC (ECU, connectors & accessories)
• STANDARD (ECU, harness & accessories)
