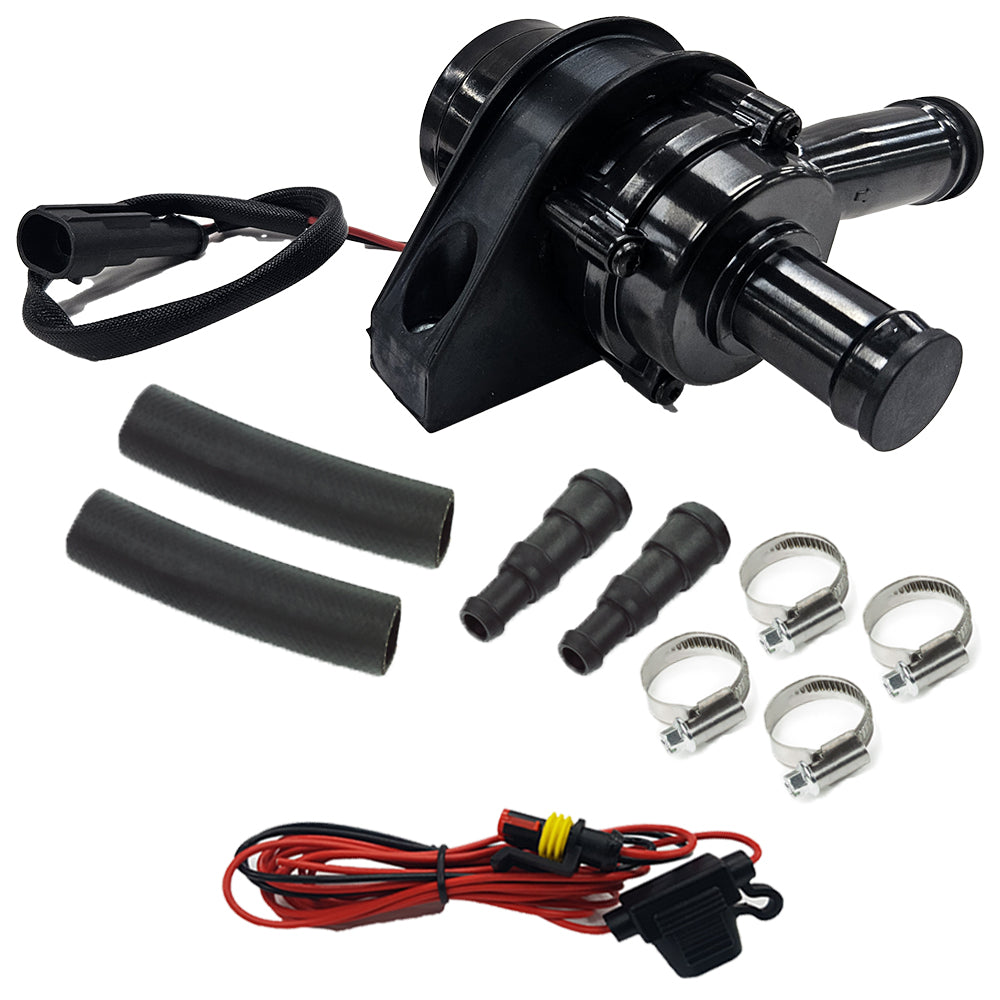

Davies Craig EBP23 Electric Booster Pump Kit 12V (9050)

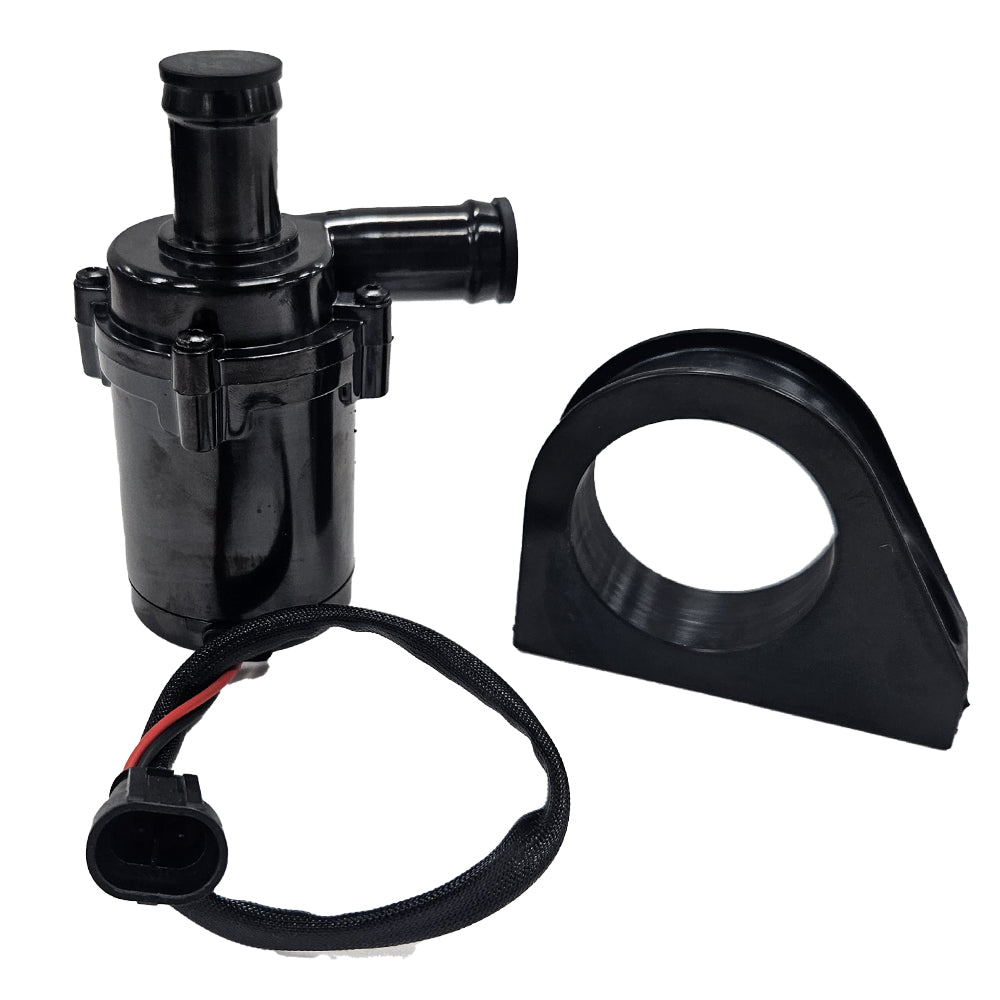

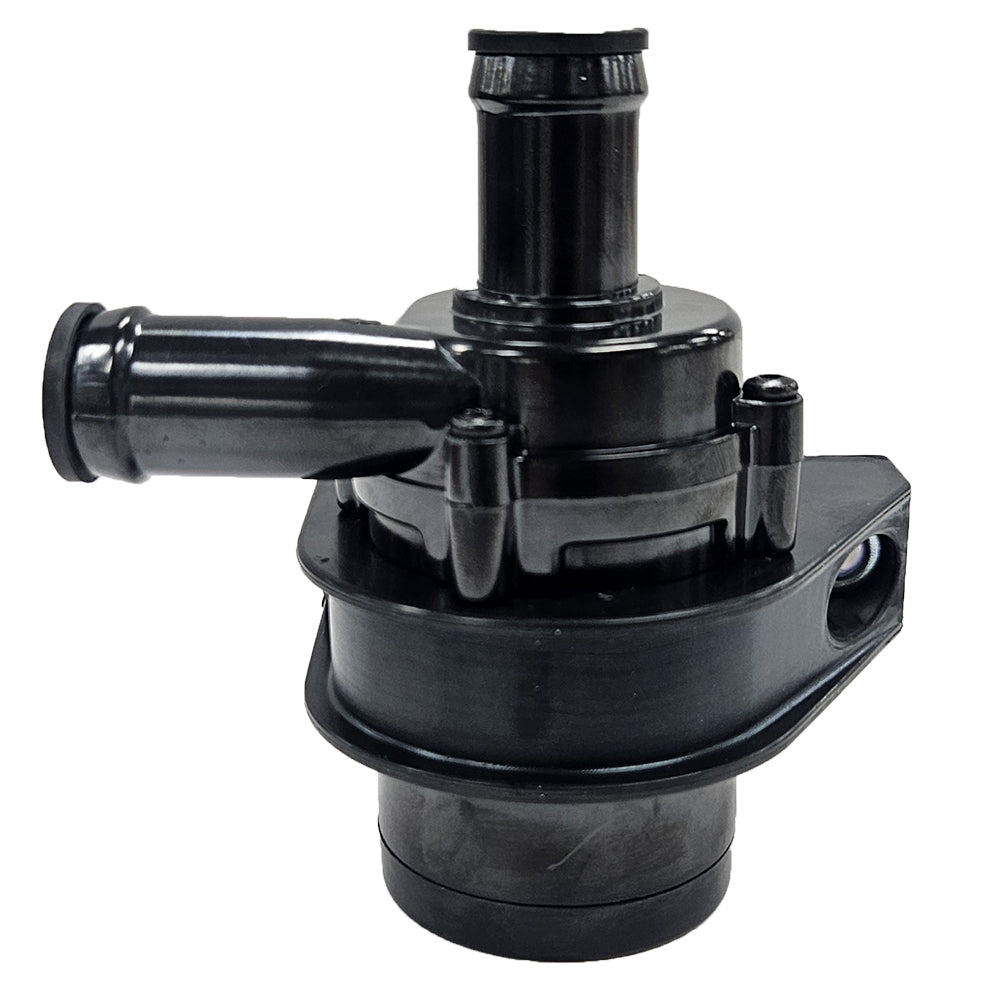

Electric Booster Pump (EBP^®23) (Part #9050)

The EBP^®23 is a ‘brushless’ 12 volt, high flow (23 litres / 6 gallons per minute), magnetically driven water pump. The EBP^® motor has no brushes to ever wear out and the pump is magnetically driven by the motor, which means that no shaft sealing is required. The many EBP^® applications include: booster for car heater and LPG systems, solar pump applications, water cooled motorcycle, go-kart engines, turbo air / water intercoolers & household irrigation.

The EBP®23 is designed to complement your existing Davies, Craig EWP (Electric Water Pump), or belt-driven mechanical water pump, or improve your heater and/or cooling system or assist engine block cooling circulation. The EBP can continually circulate coolant around the engine head, block and by-pass. It has a high flow capacity and has the advantage of running at a speed independent of the engine speed. The EBP® can also be set to continue running with a timer or thermal switch (not supplied) after engine shut down to prevent damaging heat soak.

ELECTRIC BOOSTER PUMP SPECIFICATION

ELECTRIC BOOSTER PUMP SELECTION GUIDE

EBP APPLICATION OPTIONS
The compact EBP23 has been designed for a number of applications;

1. Circulation Pump for LPG Vehicles – The EBP improves water circulation through the engine block to prevent LPG injector from icing up. Other advantages include a more even engine temperature and better engine cooling.
2. Heater Booster Pump – The EBP increases heater performance during normal vehicle operation and enables continued heater usage when engine is off (but IGNITION is ON).
3. Water Pump for Liquid Cooled Motorcycle Engines - The EBP provides liquid circulation independent of the engine speed to provide cooling at all levels. It may be used with the EWP Digital Controller to replace the existing water pump or used with an override switch to compliment the existing system.
4. Multi-Purpose Pump – The EBP may be used in a number of different applications where flow is required, such as irrigation, camping, solar pumps, go-karts or marine operations.

The EBP23 can be used as a direct fit Aux cooling pump for the following vehicles:

AUDI

• P3 (09.04 - 08.12) - 1.8 TFSI, 2.0 TFSI - Engine: BYT, BZB, COM PX/.., BWA. CAWB, CCZA

• P3 Sportback (09.04 - ... ) - 1.8 TFSI, 2.0 TFSI - Engine: CBFA. BYT, BZB, COM PX/.., BWA. CAWB, CCZA. BPY

• TT (08.06 - ... ) - 1.8 TFSI; 2.0 TFSI - Engine: COM BWA. CCZA.

VW

• BEETLE (04.11 - ... ) - 2.0 TSI - Engine: CBFA. CCTA, CCZA
• EOS (03.06 - ... ) - 2.0 TFSI - Engine: BWA. CAWB, CCZA. CCZB
• GOLF V (10.04 - 02.09) - 2.0, 2.0 GTI - Engine: PX/.., BWA. CAWB,
• GOLF VI (04.09 - 11.12) - 1.8 TSI, 2.0 GTi - Engine: COM CCZB
• GOLF VI Variant (07.09 - ... ) - 2.0 TSI - Engine: CCZA
• JETTA 111(10.05 - 10.10) - 2.0 TFSI - Engine: BPY, BWA. CAWB, CBFA. CCTA. CCZA
• PASSAT (05.07 - 07.10) - 1.8 TSI - Engine: CDAB, CGYA. BZB, COM
• PASSAT Variant (05.07 - 11.10) - 1.8 TSI, 2.0 FSI - Engine: CDAB, CGYA. BZB,CDM CCTB
• PASSAT CC (06.08 - ... ) - 1.8 TSI, 2.0 TSI - Engine: BZB, COM CAWB, CCZA
• SCI ROCCO (05.08 - 05.11) - 2.0 TSI - Engine: CAWB, CCZB
• SHARAN (12.10 - ... ) - 1.8 TSI, 2.0 TSI - Engine: COM CCZA
