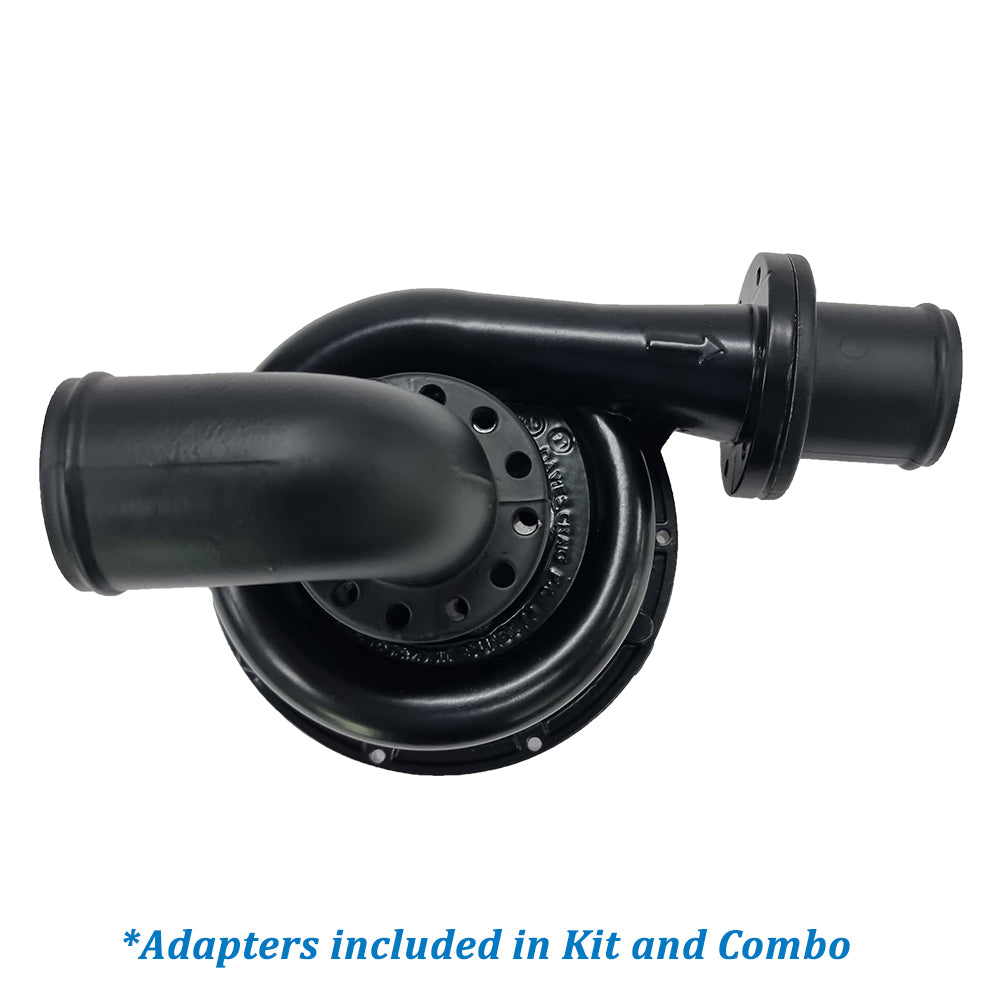

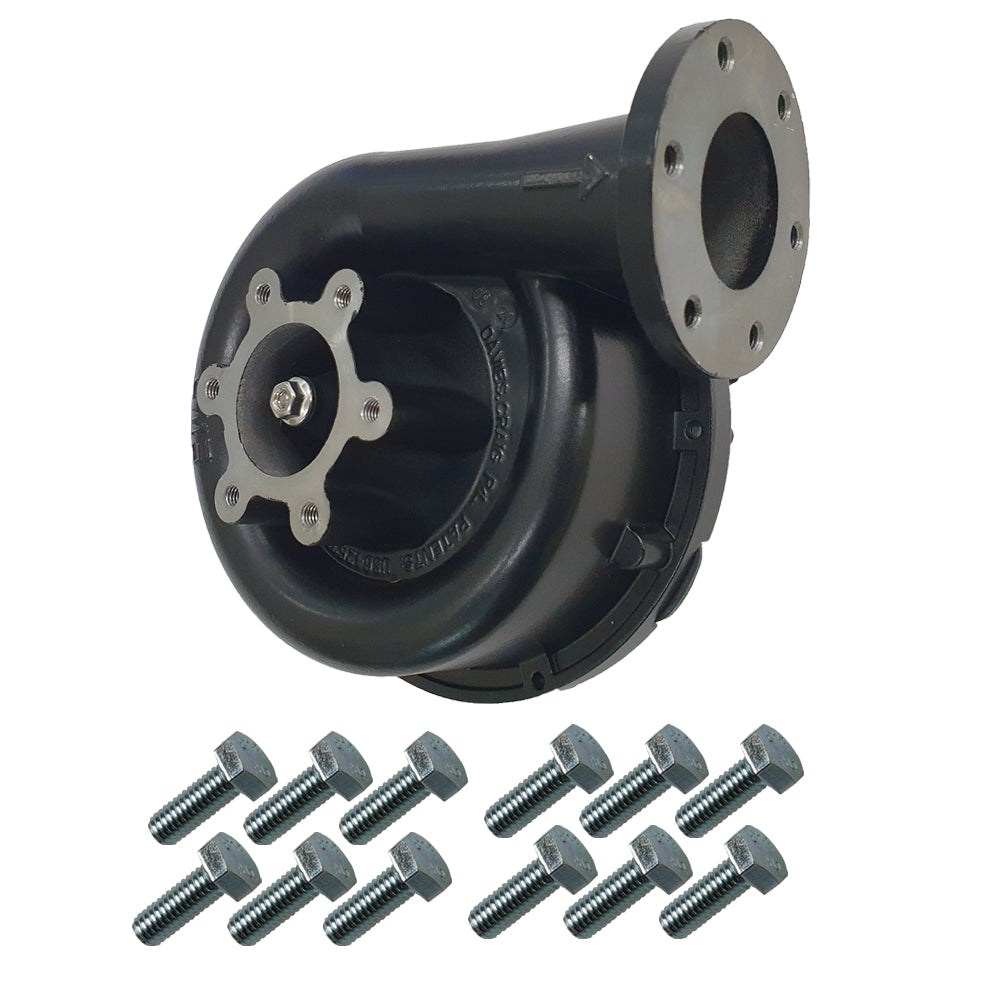

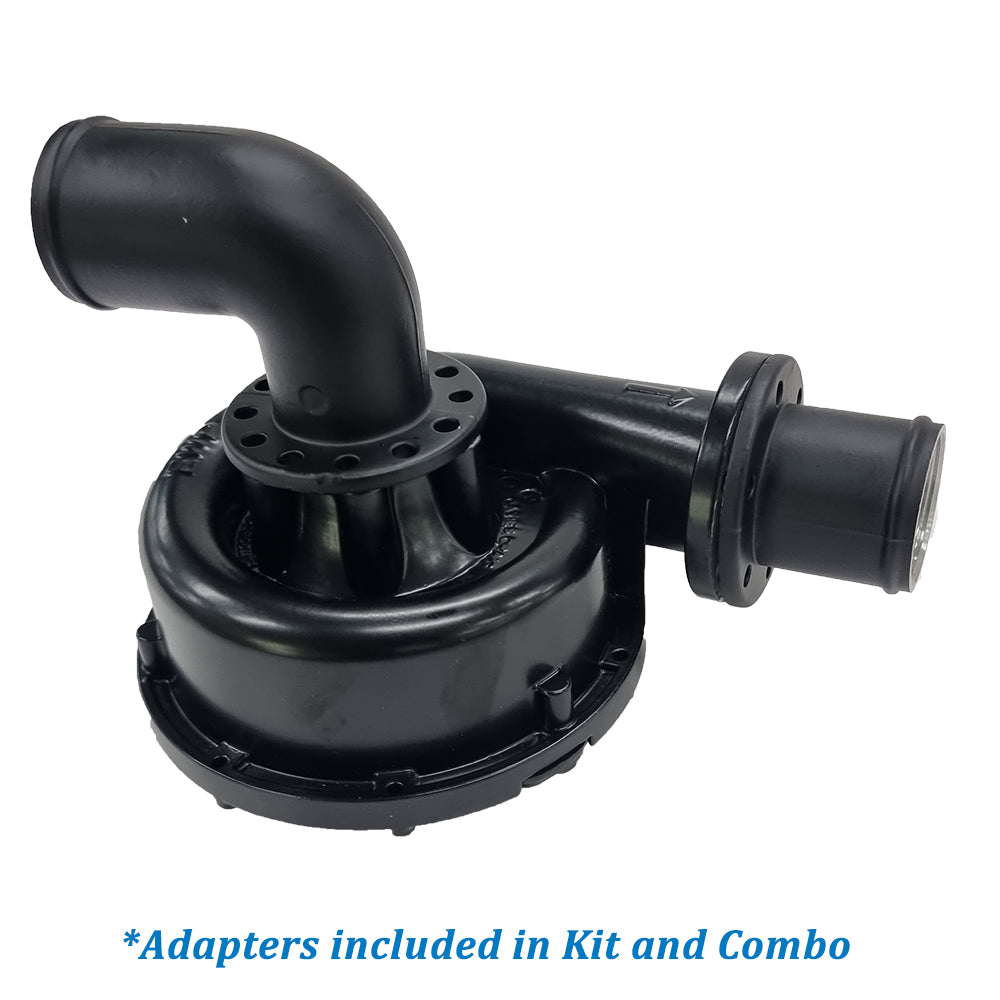

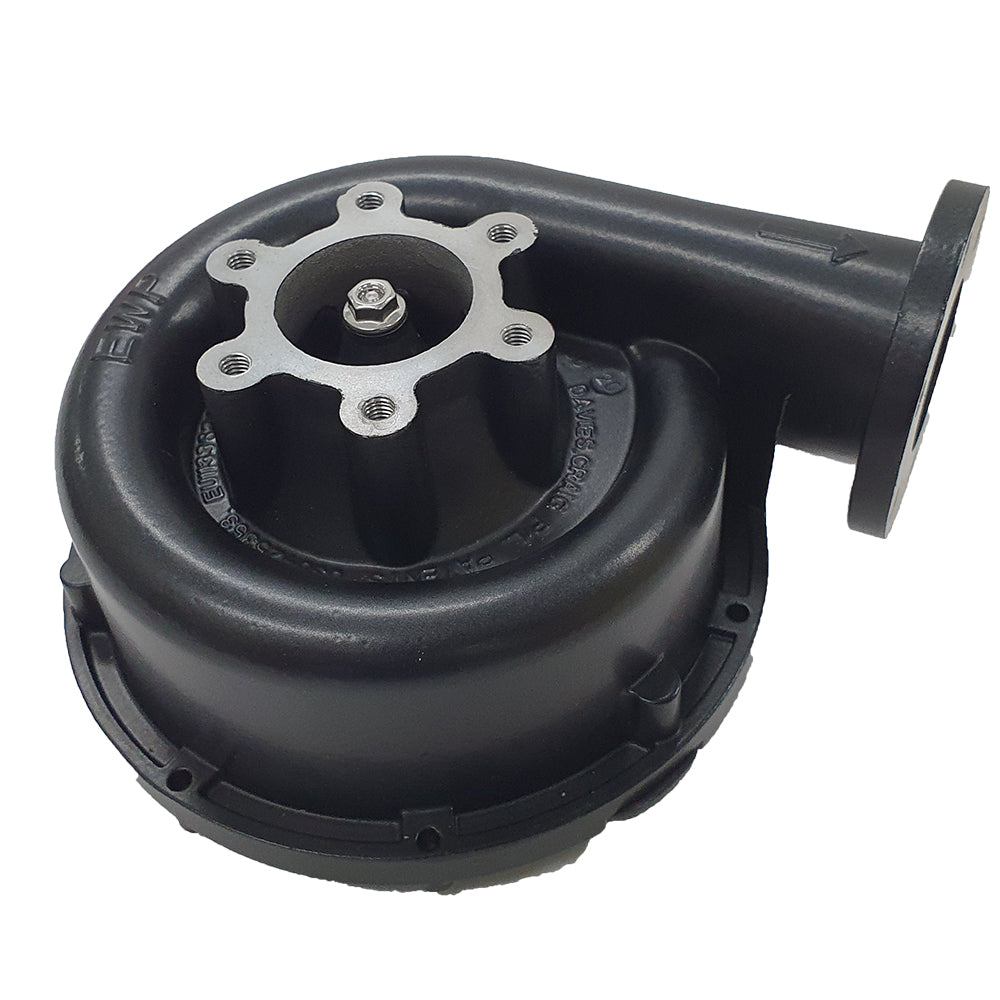

Davies Craig EWP140 Alloy Remote Electric Water Pump 12V - Pump Only (8190)

EWP^®140 Remote Electric Water Pump

12 Volt | Part Number: #8190

The EWP^® Pump-Only option is ideal for replacement, intercooler, charge cooler, or auxiliary water pump applications where wiring is already installed or custom-built.

Delivering a massive open flow rate of 147 litres per minute (38.8 g/min)

Upgrade your cooling system with the EWP^®140 Alloy Electric Water Pump (12V) — a high-flow, remote-mount solution engineered for performance vehicles that demand superior temperature control.

Designed for high horsepower, turbocharged, supercharged and modified engines, the EWP^®140 efficiently manages excessive heat while also supporting intercooler applications. By reducing the load on your engine compared to a traditional mechanical pump, it helps free up power and improve overall efficiency.

Available Options

• Pump Only – Part #8190
• Kit – Part #8090
• Combo with Digital Controller – Part #8980

Key Features

• High-flow performance for improved cooling efficiency
• Universal fit design suitable for a wide range of vehicles
• Durable black alloy construction for strength and corrosion resistance
• Flexible mounting options with a wide range of adaptor configurations
• Compatible with straight and 90° elbow adaptors for easy installation
• Compact, remote-mount design for versatile engine bay placement

Performance Benefits

• Enhances coolant flow and heat dissipation
• Improves engine temperature control under load
• Reduces parasitic loss from mechanical pumps
• Can complement or fully replace the factory water pump
• Helps increase power delivered to the drive wheels

Flexible Installation

The EWP^®140 follows the proven design of the EWP^®80, offering multiple inlet and outlet configurations:

• Bolt-on straight or elbow adaptors
• Simplified hose routing and installation
• Ideal for tight engine bays and custom setups

Built for demanding conditions, the EWP^®140 is an essential upgrade for anyone looking to maximise cooling efficiency and engine performance.

EWP^® Installation Options

Electric Water Pumps (EWP^®) offer flexible installation methods to suit a wide range of vehicles and performance goals. Whether used to enhance an existing cooling system or fully replace a mechanical pump, an EWP^® delivers improved cooling efficiency, reduced engine load, and potential fuel savings.

Auxiliary or Replacement Installation

An EWP^® can be installed in two primary ways:

Auxiliary Pump (Recommended for simple upgrades)
Installed alongside the factory belt-driven pump, the EWP^® significantly boosts coolant flow and heat dissipation.

• A short section (approx. 100mm / 4") is removed from the lower radiator hose
• The EWP^® is inserted inline and secured
• Wired via a thermal switch or digital controller
• Can operate in conjunction with electric radiator fans

Performance benefit:
At idle, a mechanical pump typically circulates ~15 L/min. An EWP^®150 can add up to 162 L/min, dramatically improving cooling and reducing heat soak.

Upgrading to a digital controller allows the pump and fans to continue running briefly after engine shutdown, helping prevent heat damage to critical components such as the head gasket.

Disabling the Mechanical Water Pump

This method retains the original pump housing but removes its function:

• Install the EWP^® in the lower radiator hose
• Remove the factory thermostat
• Fit a shorter drive belt to bypass the pump pulley

Optional (continuous operation):

• Modify the thermostat by drilling two 3mm holes to allow constant coolant circulation
• Reinstall with a clean housing and new gasket if required

This approach offers a straightforward installation with minimal modification.

Disengaged Mechanical Water Pump (Recommended Setup)

For improved efficiency while maintaining belt routing:

• Remove the thermostat and mechanical pump impeller
• Reinstall the pump housing to act as an idler pulley
• Block any bypass passages
• Install the EWP^® in the lower radiator hose

This method reduces parasitic loss while avoiding major belt system changes.

Full Removal of Mechanical Water Pump (Ideal Setup)

For maximum performance and efficiency:

• Remove the mechanical water pump and thermostat entirely
• Install a block adapter or blanking plate (not supplied)
• Modify or replace the radiator hose to suit EWP^® installation
• Fit an appropriate belt to drive remaining accessories

This setup eliminates mechanical drag and delivers the greatest efficiency gains.

Mounting & Installation Notes

• In most installations, the EWP^® is supported by the radiator hose
• Where additional mounting is required, soft mounting is essential to minimise vibration
• Recommended mounting kits:
  • Part #8700
  • Part #8710
    (Suitable for EWP^®115, EWP^®140, and EWP^®150 models)

Key Benefits of EWP^® Systems

• Increased coolant flow and cooling performance
• Reduced engine load → improved power delivery
• Lower fuel consumption
• Improved engine protection during hot shutdown
