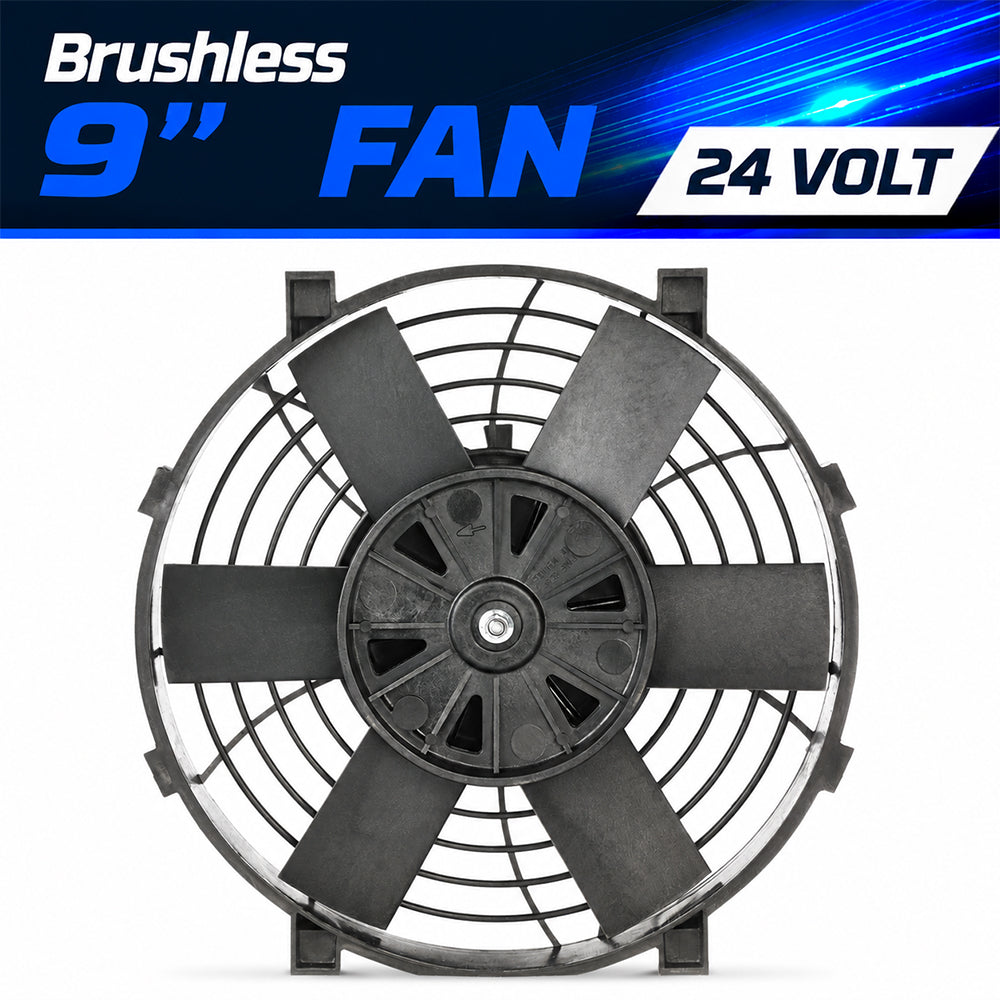

Davies Craig Brushless 9" Thermatic Electric Fan 24V (0124)

Brushless 9" Thermatic^® Electric Fan (24 VOLT) (PART #0124)

Davies Craig 24 Volt Brushless Thermatic^® Electric Fans offer outstanding performance for their size delivering up to a staggering 44% increase of air flow and 5 times the service life over the standard brushed models!

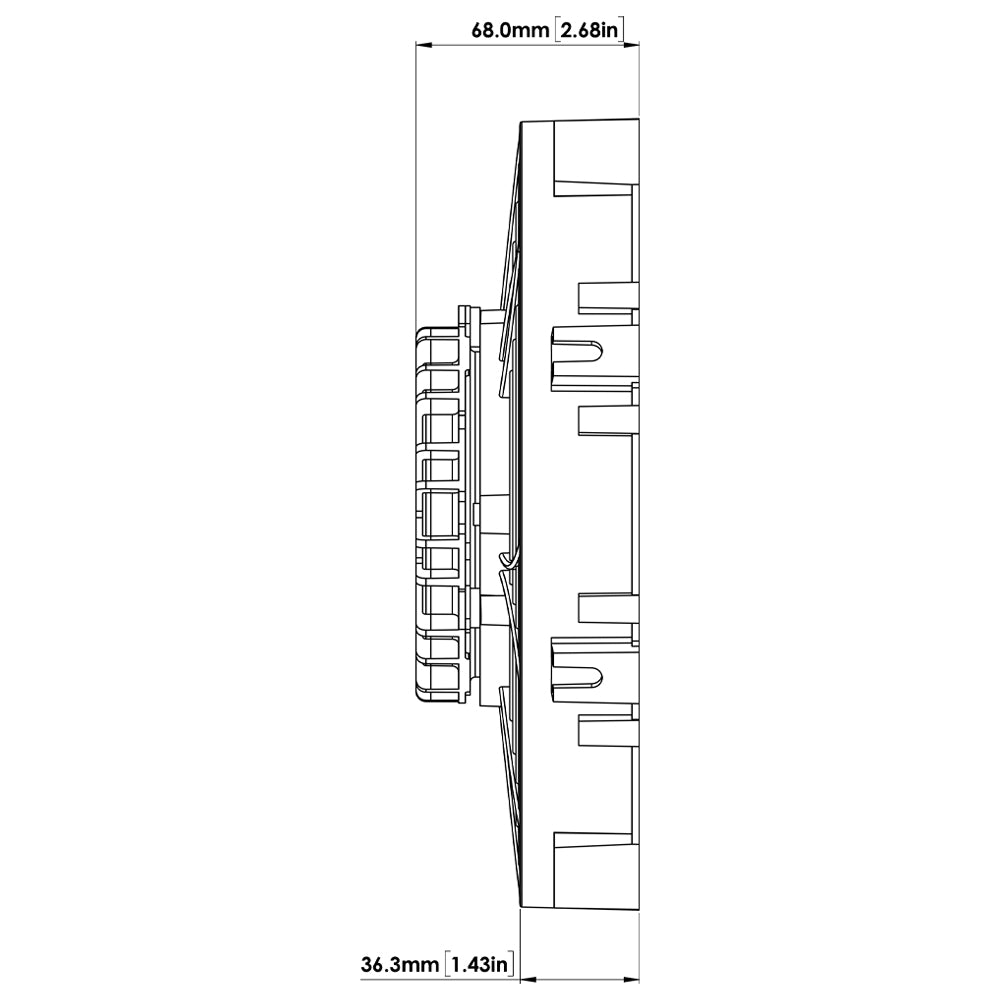

Despite the significant performance increase, the Brushless Thermatic^® fan maintains the same depth as the brushed High Power equivalent, making it an easy upgrade where space is limited.

Ideal Applications

Brushless Thermatic^® Fans are suitable for a wide range of cooling applications, including:

• Radiator cooling
• Air conditioning condenser cooling
• Transmission oil coolers
• Engine oil coolers

Key Benefits

• Constant or variable airflow control
• Improved fuel economy
• Enhanced air conditioning performance
• Lower engine operating temperatures
• Low-profile, high-performance design
• Increased engine efficiency and power

Advanced Motor & Control Technology

The IP68-rated brushless motor features built-in reversible rotation technology, allowing the fan to operate as either:

• Upstream (pusher), or
• Downstream (puller)

With nine (9) smart motor control modes, the fan offers unmatched flexibility:

• Full-speed operation
• Analogue speed control
• Pulse Width Modulation (PWM) speed control

This ensures optimal airflow control for virtually any vehicle or cooling setup.

Installation Notes

• Fan assemblies are supplied factory-configured for upstream (pusher) applications.
• For downstream (puller) operation, the fan blade must be removed and reversed, and the wiring adjusted according to the supplied instructions.
• Always confirm the fan blade rotates in the direction indicated by the arrows on the blade before final wiring and permanent mounting.
