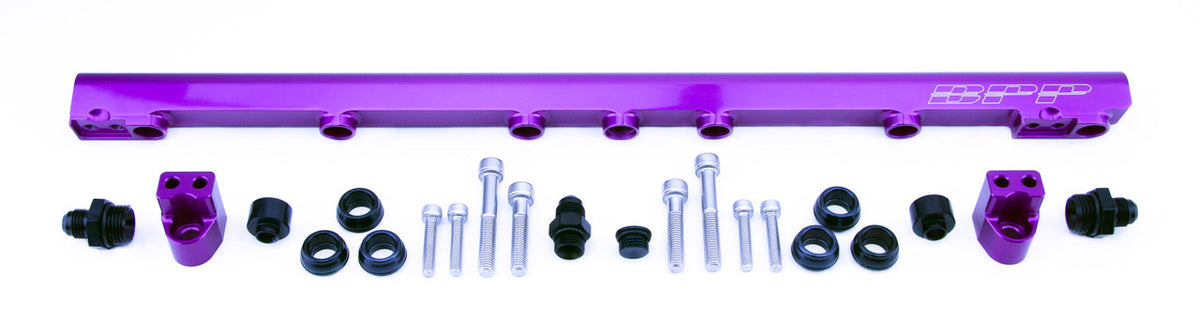

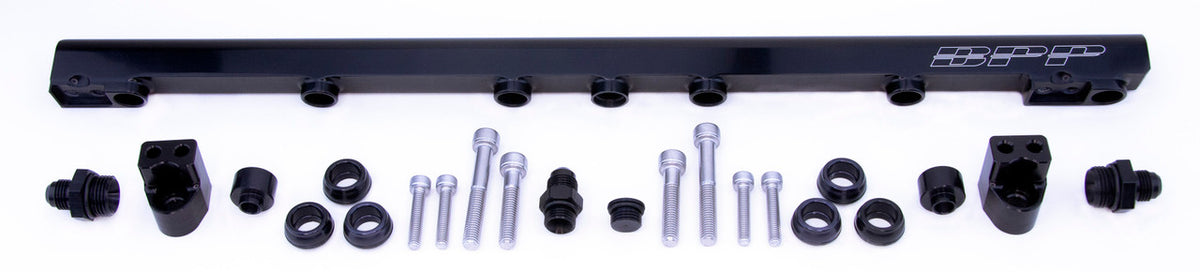

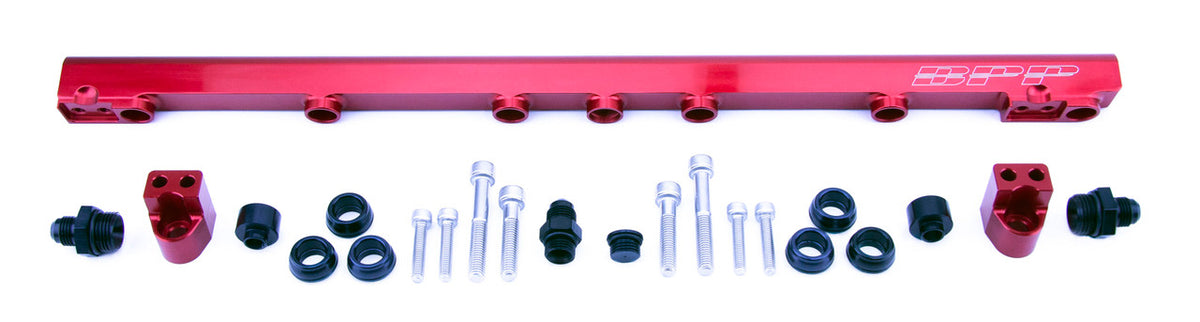

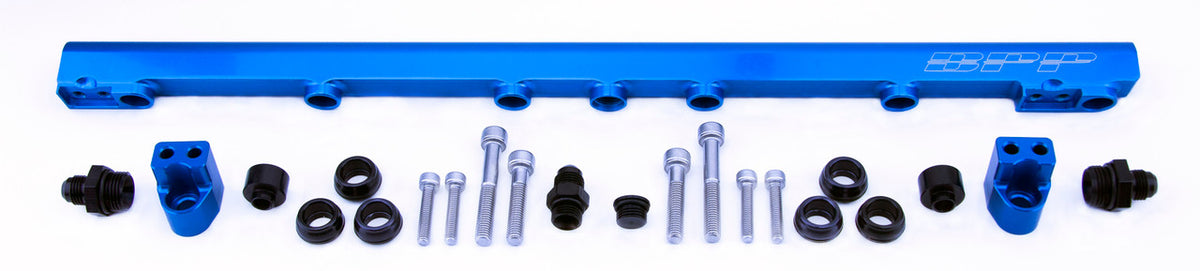

BPP Toyota 1JZ-GTE Fuel Rail Kit

BPP Toyota 1JZ-GTE Fuel Rail Kit

Billet Performance Products have developed a direct bolt-on fuel rail kit for the Toyota 1JZ-GTE (non-VVTi). The kit is designed to suit 14mm top feed injectors and comes complete with o-ring seal injector-to-manifold adaptors and all parts needed to fit the Toyota 1JZ-GTE Fuel Rail straight to the vehicle.

The fuel rail is CNC machined from 6061-T6 billet aluminium with a full 16mm ID through bore, designed to support all HP levels. Each rail is machined to suit -8 O-ring seal fittings for positive, leak-free operation, and finished in a type II bright dip anodised coating in Black, Blue, Purple or Red that looks great and protects against corrosion.

Compatibility

Engine: Toyota 1JZ-GTE (non-VVTi)
Vehicles: Toyota Chaser / Cresta / Mark II JZX81 & JZX90, Supra JZA70

Injector Compatibility

• EV14 size injectors (48.7mm) eg. ID1000/ID725 or Bosch 1000cc, 725cc, 550cc without adaptors, or Injector Dynamics ID2000/ID1700/ID1300/ID850 or Bosch 2000cc with 3/4 adaptors
• EV1/EV6L/EV14 with 14mm adaptors (60.3mm) eg. ID1000/ID725 or Bosch 1000cc, 725cc, 550cc

Notes

• Fittings supplied including a -6 block-off if the centre return is not used.

Why Choose BPP?

• Direct bolt-on – complete kit with adaptors, brackets and hardware.
• 16mm through bore – flow to support any power level.
• -8 ORB ports – positive, leak-free sealing.
• CNC machined 6061-T6 billet – anodised for durability and looks.
